Print both saddles on their broad U-shaped side faces as shown, 4 mm apart. PETG, 100% infill, 0.4 mm nozzle; pointed screw-hole roofs need no supports. The store reserves an 11 mm bed margin.

One pair per quantity. Four pan-head screws/flat washers and a separate retaining strap are required, not included. Stationary indoor, fully enclosed equipment only; keep vents clear and follow its mounting/temperature guidance. Physical print, fit, heat and loaded-use tests are pending; no load rating.

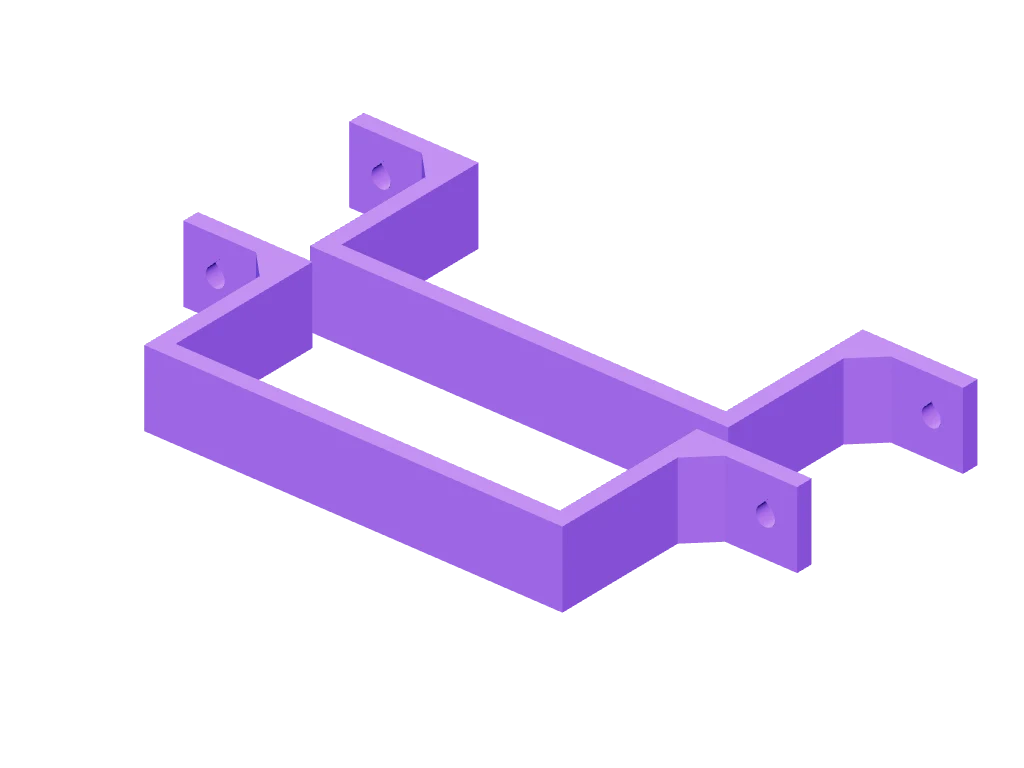

Custom electronics mounting saddles

Name: Custom electronics mounting saddles
Brand: 3DPrinterVerse

One PETG pair sized to an enclosed case and existing screw centers. Independent ventilation gap, measured clearance and live fit preview. Hardware and retaining strap separate.

Start with a preset

Measured example only. Check your enclosure, flat mounting surface, vents and all four screw positions.

Measure the case and the mounting surface

Measure the widest case section including feet or ribs where each saddle will sit. Add total width clearance once. Set the top gap from the case to the flat mounting plane, following the device maker’s ventilation clearance. Match the screw centers across each saddle; you place the two saddles along the case length.

Finished opening:: 90.80 mm wide × 38.00 mm from bridge top to mounting plane; 6.00 mm above the measured case.
Mounting:: 130.00 mm screw centers across each saddle, four screws total. 4.50 mm circular shank clearance inside pointed holes; 9.00 mm head/washer envelope.
Along the case:: Each saddle covers 18.00 mm. Allow at least 40.00 mm of usable case length for both, including a 4 mm separation. Keep vents, cables and end connectors clear.
Complete pair print:: 145.00 × 88.00 × 18.00 mm, including a 4 mm print gap.

One open-ended PETG pair per quantity. Four pan-head screws/flat washers and a separate retaining strap are required, not included. Stationary indoor use with fully enclosed equipment only; no bare electrical components or hot equipment. Physical print, fit, heat and loaded-use testing are pending; no load rating.

Measured case width25–230 mm

Measured case height10–130 mm

Mounting screw center spacing45–260 mm

Gap above case2–25 mm

Width along case length12–40 mm

More dimensions (6)

Total case width clearance0.3–2 mm

Screw clearance diameter3–6.5 mm

Screw head or washer diameter6–14 mm

Side wall thickness3.2–8 mm

Bottom bridge thickness3.2–8 mm

Mounting ear thickness3.2–8 mm

Custom electronics mounting saddles

One PETG pair sized to an enclosed case and existing screw centers. Independent ventilation gap, measured clearance and live fit preview. Hardware and retaining strap separate.

Start with a preset

Measured example only. Check your enclosure, flat mounting surface, vents and all four screw positions.

Measure the case and the mounting surface

Finished opening:: 90.80 mm wide × 38.00 mm from bridge top to mounting plane; 6.00 mm above the measured case.
Mounting:: 130.00 mm screw centers across each saddle, four screws total. 4.50 mm circular shank clearance inside pointed holes; 9.00 mm head/washer envelope.
Along the case:: Each saddle covers 18.00 mm. Allow at least 40.00 mm of usable case length for both, including a 4 mm separation. Keep vents, cables and end connectors clear.
Complete pair print:: 145.00 × 88.00 × 18.00 mm, including a 4 mm print gap.

Measured case width25–230 mm

Measured case height10–130 mm

Mounting screw center spacing45–260 mm

Gap above case2–25 mm

Width along case length12–40 mm

More dimensions (6)

Total case width clearance0.3–2 mm

Screw clearance diameter3–6.5 mm

Screw head or washer diameter6–14 mm

Side wall thickness3.2–8 mm

Bottom bridge thickness3.2–8 mm

Mounting ear thickness3.2–8 mm

Details

Fit an unusual enclosed power brick, hub or small electronics case to a flat underside using measured case dimensions and existing screw spacing. One pair of open-ended PETG saddles per quantity. Position them along the case to clear vents and ports. Hardware and a separate retaining strap are required and not included. Physical print, fit, heat and loaded-use testing are pending; no load rating or equipment-fit claim. Measure the widest rectangular case envelope at both saddle positions, including feet and ribs. Add total width clearance once. Set the gap above the case to the equipment maker’s required ventilation clearance; the preset gap is an example only. Crosswise screw pitch is shared by both saddles. Place the pair independently along the case length, leaving at least 4 mm between two vent-free strips of the selected saddle width. Keep ports, switches, cables and every vent clear. Four pan-head screws with flat washers and a separate retaining strap are required, not supplied. Select screw lengths for the mounting substrate. Open-ended saddles have no integral latch or end stop; slide the case in and fit the retaining strap to prevent lengthwise movement. Flat mounting ears have 45-degree external braces. Checks preserve straight head/washer access, material around the holes and the full two-part A1 layout. Each screw center stays within 25 mm of its upright outside face to avoid long ears. The pointed screw holes contain the selected circular shank clearance. Print both broad U-shaped side faces on the bed, 4 mm apart, PETG at 100% infill with a 0.4 mm nozzle and no supports. Stationary indoor use beneath a flat surface with fully enclosed equipment only, following its mounting and temperature guidance. No bare electrical components, battery packs, hot enclosures, wall mounting or transport retention. Price follows generated material volume and surface area for both saddles, braces and screw passages. Physical print, fit, heat, creep and loaded-use tests are pending; no load, temperature or equipment-fit rating is claimed.
