Divided parts tray
A six-pocket tray for screws, beads, and small parts.
From $17.83Customizable

Loading 3D preview…
Free for personal use. Please don't sell prints.
Millimeters · flat on the print bed · separate parts in a ZIP.
Bambu A1 · Fits the 256 mm bed
Print upright with the large opening on the bed. The transition and entry chamfers are checked for support-free printing. The store reserves an 11 mm bed margin.
PETG recommended for workshop use. Start with 0.3–0.4 mm total diametral clearance and trial the actual ports; large straight sockets may need more allowance. Straight or gently tapered smooth round push-fit ports only. Tapered ends match two measured diameters with positive clearance; no locking fit is promised. Support the hose separately. Physical print, fit and airflow testing are pending.

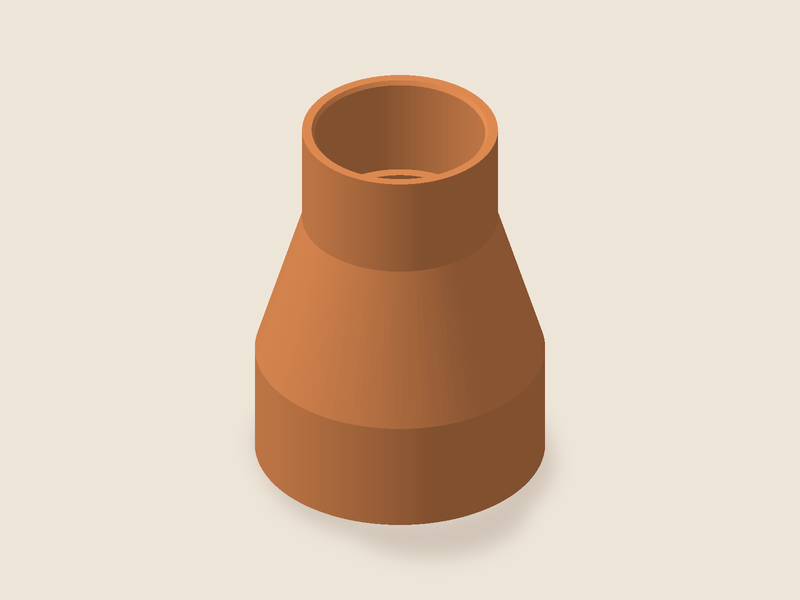

Connect mismatched round tool ports and vacuum hoses. Independently choose straight or measured tapered sockets/inserts at both ends.
Original two-socket geometry. Measure the outside diameter of both ports.
Measure the mating surfaces
Fit over: measure the port’s outside diameter. Fit inside: measure the opening’s inside diameter. Enter actual millimetres; nominal hose sizes vary.
For a tapered end, measure at the free lip, then again exactly one engagement depth from that lip: toward the tool body for an outside port, or into the opening for an inside fit. Check the midpoint too; this design matches a straight-sided cone, not a curved or stepped cuff.
To slide together, an outside port must widen toward its body; a receiving bore must narrow into its opening. Equal readings are also supported. Reverse tapers need a different connection.
Clearance is across the diameter: added for sockets and subtracted for inserts. The default is 0.4 mm.
Presets are measured examples, with no brand-fit promise. Tapers use positive clearance, not an interference lock: support the hose separately and do not force the fit. PETG recommended. Physical print, fit and airflow tests are pending. Fit and print notes.
Connect mismatched smooth round tool ports and vacuum hoses using measured diameters. Each socket or insert can be straight or match a gentle taper measured at the lip and engagement depth. PETG recommended. One adapter per quantity; physical print, fit and airflow testing are pending. Fit over: measure the mating part outside. Fit inside: measure its bore inside. For each tapered end, measure at the free lip and again exactly one engagement depth toward the body for an outside port, or into the opening for an inside fit. Check the midpoint: the diameter must change linearly. For assembly, an outside port must stay the same size or widen toward the body; a receiving bore must stay the same size or narrow into the opening. Reverse tapers are rejected. The adapter mouth mates with the depth reading, while its shoulder mates with the lip reading. The diagram shows the mating part being measured, not the installed adapter. Positive diametral clearance is added once for sockets and subtracted once for inserts. This follows the measured taper; it does not promise an interference lock, airtightness or hose retention. Do not force the fit. Smooth, circular, straight-sided cones only: no oval, curved, stepped, ribbed, threaded or locking cuffs. A cuff may change radius by at most 0.25 mm per millimetre of engagement; the transition, entry chamfers, remaining walls and minimum 8 mm bore are checked. The whole part, including wider taper mouths, must fit the 245 mm usable envelope inside the Bambu A1's 256 mm bed. Print upright with the large opening down without supports. PETG recommended; keep the hose independently supported. Room-temperature dry woodworking dust only, with no pressure, liquid, heat or hazardous-dust application. Tools, hoses and hardware are separate. Price follows material volume and surface area; checkout validates and recalculates. Physical print, fit and airflow testing are pending; no collection-performance or brand-fit claim. Presets are measured examples only. Original taper extension of Devan's straight adapter; no competitor CAD or mesh copied.
