Divided parts tray
A six-pocket tray for screws, beads, and small parts.
From $17.83Customizable

Loading 3D preview…
Free for personal use. Please don't sell prints.
Millimeters · flat on the print bed · separate parts in a ZIP.
Bambu A1 · Fits the 256 mm bed
Print with the lower L-shaped flange flat on the bed and the strap channel upright. Use one pad at each outside corner; print four matching pads for a rectangular frame, or choose the four-pad strap-clamp kit. Measure the webbing width and thickness. Width allowance is the total extra channel height, deliberately loose so the band can settle; lips must extend at least 0.4 mm beyond its thickness. The upper lip has a sloped underside. Trial on scrap with light hand tension, check both contact faces and corner relief, and inspect the bridge and lips before increasing tension. Load testing is pending. The store reserves an 11 mm bed margin.
Physical print testing is pending.

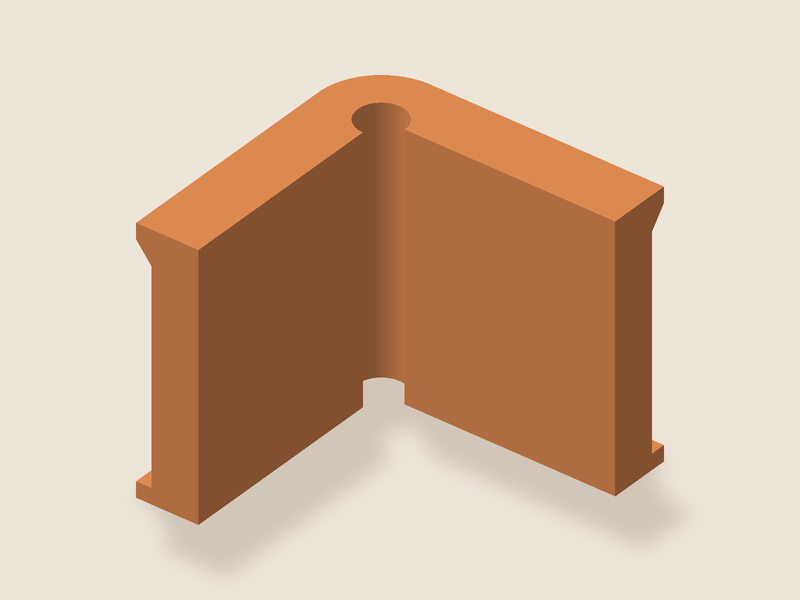

Corner pads for gluing up frames with a strap clamp.
Default size 38 × 38 × 33.5 mm, for 25 mm webbing. A frame needs four; get them in the strap clamp kit.
