Free for personal use. Please don't sell prints.
Millimeters · flat on the print bed · separate parts in a ZIP.
Bambu A1 · Fits the 256 mm bed
Print with the broad mounting plate flat on the bed and the socket opening upward. Vertical screw holes and the outward entry bevel need no supports. The store reserves an 11 mm bed margin.
PETG, 100% infill. One socket per quantity; hardware is separate. Physical fit and load testing are pending; no load rating is claimed.
Fit an unusual rectangular rail and two to six sound existing screw holes: vertical, triangular or staggered. Live measured preview; one PETG socket.
Example measurements only. Measure the entire rail end, including any lips or folded edges.
Measure the rail end and existing screw centers
Use calipers on the full rectangular rail end, including folded lips. Total clearance is added once to its width and height. Look into the socket opening with the cabinet upright: X points right and Y points up.
For two-hole spacing, measure the horizontal distance, not the diagonal. Positive screw height difference raises the right hole; negative lowers it. Positive socket offsets move its center right and up from the hole midpoint. Choose measured screw centers for vertical holes or a different hole count.
For plain rectangular rail ends and screw-mounted rear supports. Compare the diagram with your cabinet before ordering; opposite sides may need mirrored measurements. Check insertion depth against the space behind your rail. The plate grows around the measured layout; check that the whole plate has room. Suitable stock nylon or metal sockets can cost less when they fit.
Reuse only sound screw holes in a solid cabinet mounting surface, with suitable pan-head screws or washers. This socket does not repair stripped holes or a weak cabinet back. Hardware is separate. Peg-in, V-notch and locking rail ends need a different design. Presets are measured examples, with no brand compatibility claim.
One socket per quantity; order two if both rails need one. Physical print, fit and load testing are pending; no load rating is claimed.

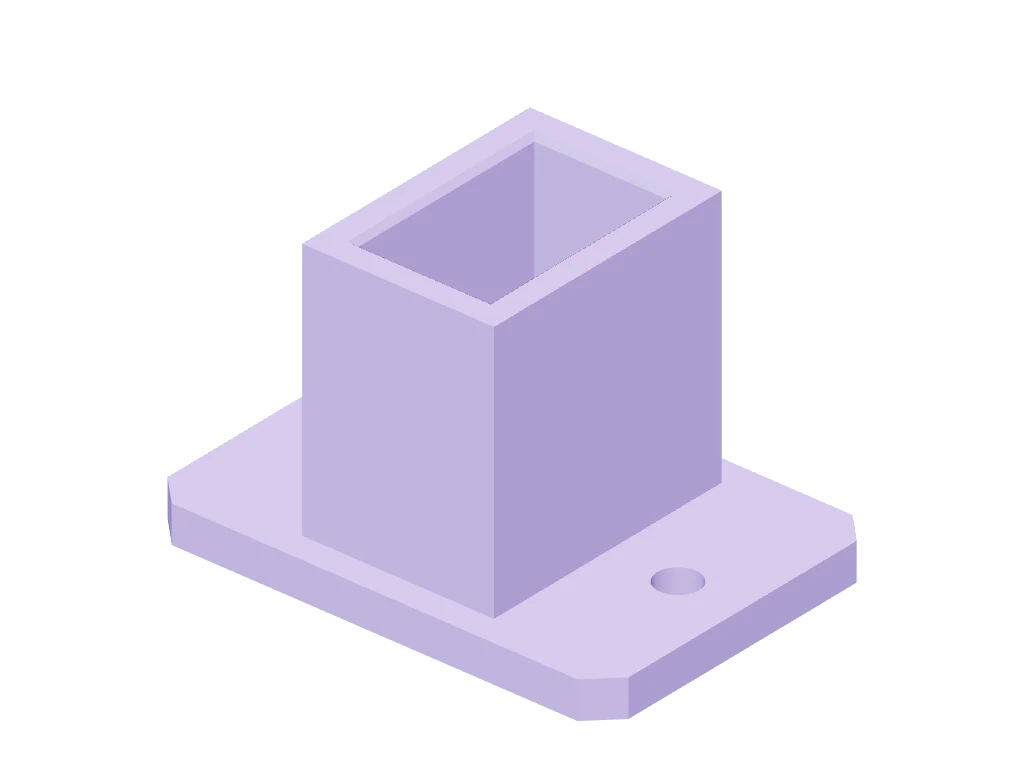

Replace an unusual rectangular rear drawer-rail socket using actual rail dimensions and sound existing screw holes. Choose the original two-hole spacing with socket offsets, or two to six independently measured screw centers, including vertical, triangular and staggered patterns. One PETG socket per quantity; hardware is separate. Physical print, fit and load testing are pending; no load rating is claimed. Measure the entire rectangular rail end including folded lips, insertion depth, screw shank diameter and the largest head or washer diameter. Look into the socket opening with the cabinet upright: X points right and Y points up. In measured screw centers mode, the origin is the rail opening center, not the plate edge. Enter two to six ordered X/Y pairs; negative is left or below. Mirror X values from a tracing made from behind. The plate grows symmetrically about the opening; check the full displayed width and height against the available cabinet space. In the earlier two-hole spacing mode, spacing is horizontal rather than diagonal, screw height difference is right minus left, and positive socket offsets move the rail right and up from the screw-hole midpoint. Clearance is added once to rail width and height. Each head or washer keeps at least 2 mm clear of the complete sleeve, including corners. Measured holes also keep at least 2 mm between head envelopes. Use sound screw holes in a solid supporting cabinet surface with suitable pan-head screws or washers. This part does not repair stripped holes or a weak cabinet back. Plain rectangular rail ends only; peg-in, V-notch and locking profiles need another design. Hardware, rail and cabinet are separate. Presets are examples, with no brand-fit claim. One socket per quantity; order two if both rails need replacement, using separate configurations for different sides. The full model must fit the 245 mm usable envelope inside the Bambu A1's 256 mm bed. Print mounting plate down, opening up, PETG at 100% infill with a 0.4 mm nozzle, without supports. Dimension-generated material volume and surface area, including every hole, drive pricing; checkout validates and recalculates. Suitable stock nylon or metal sockets can cost less when they fit. Physical print, fit and load testing are pending; no load rating is claimed. Original CAD; no competitor mesh copied.
